12/12/2018

Nokia 208 charging port USB jumper ways 100% solution

Nokia 208 charging port USB jumper ways 100% solution

The most populated phone is Nokia phones, as a technician, being expert on Nokia phones ia way forward. In this site there is no way we can upload solutions without touching Nokia phones. Solutions you see here are tested solutions in our workshop both Nigeria and South Africa. Always check on us for other Nokia solutions like Nokia 130 keypads jumper.

Phone dropping in liquid is a common thing and what follows next. Below is the easiest way to fix the Nokia 208 charging port USB jumper.

11/02/2017

How to repair Nokia 301 asha USB charging ways solution jumper.

That you have an android phone doesn't mean that it will not damage. Sometimes our carelessness brings problem to us. We at zamdtek always seek way to help you out of your problem.
We bring to you the simple way to fix  Nokia 301 USB charging ways jumper

What you need to fix Nokia 301 asha USB  ways jumper.


Nokia USB ways

  1. A good working common sense very important.
  2. A complete set of phone screw drivers.
  3. Working digital or analogue meter.
  4. A rework station in case you want replace an ic.
  5. A sharp blade to scratch the point you want to solder.
  6. A good working soldering iron and soldering paste.
  7. Connecting wires or use old handsfree wires.
  8. A little technical skill.
  9. Check the diagram or picture very well.


Steps on how to repair Nokia 301 USB ways


  • Loose or disassemble the Nokia 301 USB charging way
  • Carefully remove Nokia 301 asha cover.
  • Use cleaning fluid to clean the Nokia Asha 301.
  • Scrap the points according to the picture.
  • Use your connecting wire to short or join the points together.
  • Ensure that your soldering iron is hot and has a good tip.
  • Test the continuity with meter of the point you just join together.


Check other similar phone solutions here.

Tecno android  P5 network solution

Nokia Lumia mic solution

Blackberry Passport hanging solution

Remove android pattern without lost of data


Test the Nokia 301 charging USB ways jumpers before you tight the phone back

8/14/2017

How to transfer files from android to PC without cable

How to transfer files from android to PC without cable.


Today we are going to introduce to you another method which you can connect your android phone to computer without any USB.

Just as we gave you a solution of android imei repair without pc. We also showed you how you can turn your android into computer. We continue to breakdown those technology that you feel is complex.

If you can remember how to remote your device with your phone through bluetooth. You can also transfer files from your phone to your computer through bluetooth. But this method has disadvantage of time wasted when transferring a large file.

As technology advance we continue to see easier life through technology like introduction of Flashshare and xender. Although Xender can be used to transfer files from android to computer but we a have a powerful and simple app called airMoore

airmore connect android to pc without USB





How to use AirMore

  1. Use google play store and download airmore to your android.

  2. Turn on your android and pc WIFI.

  3. Type web.airmore.com or launch airmore from their website.
 airmore connect android to pc



  • Open AirMore app on your android phone.

  • Press scan to connect on your smart phone.

Select your Android in Radar on the web. A notification window will pop up on your Android, requesting to connect. Click “Accept”.

                                                 AirMore connect android to pc


Transfer Photos

When the two devices are connected, choose “Pictures” icon.
Select an item or  photos you would like to transfer and click “Export”.

Caution: If you select less than three photos, they will be downloaded separately. If you select three or more, they will be compressed into a zip file.


AirMore connect pc to android




Please stay glued because we are just starting.

7/16/2017

Nokia lumia 630 mouthpiece or mic solution

Nokia lumia 630 RM-678 mic or mouthpiece solution


Here comes a way to fix Nokia Lumia 630 mic or mouthpiece in case the printed dot on the board is missing.

Nokia Lumia 630 mic solution


  • Get ready your blade


  • Scrap the points


  • Get universal mouthpiece/mic


  • Make jumper

Nokia Lumia 630 mic solution



Ensue to tap the soldering points to avoid short-circuit

Caution:
Zamdtek is not associated with wireless organizations like Nokia, Samsung, Sony Ericsson, Lg,  Motorola and some other and so forth Makers/Merchants . All trademarks are the property of the particular trademark owners. We simply give outlines to ponder and repairing reason.

Factory Hard reset will set your telephone in original factory settings. It will expel every one of the information and applications that you introduced. Your contacts will be deleted and you need to include them once more.

Stock Firmware we attempt to give the best and most recent glimmer records and firmware, Yet we don’t ensure the exactness or similarity of any of the documents. So utilize them at your own hazard!.

Hardware problems:  the solution we posted here has been tested in our workshop. We don’t take any responsibility whatever if anything go wrong in cause of your own work . We repeat this and loud please do it at your own risk. You can ask us how.

Thanks

6/30/2017

How to enable Samsung Note S4 android 5.0 diagnostic mode


Samsung android 5.0 diagnostic mode enable

How to enable or activate Samsung android 5.0 and above diagnostic mode for flashing.

It has been a thing of disturbance that many Samsung running android lollipop version 5.0 and above have this problem of not enter diagnostic mode when you want to work with it.
Samsung android 5.0 diagnostic mode enable



Step 1 go to Menu phone dialer and dial

 *#9090#


Step 2 this picture down will pop up



 Samsung Diagnostic USB

Step3 Then select   DM/DU over HSIC*


Step 4 go back to Menu dialer and dial

*#0808#


Step 5 this display picture down will pop up


Samsung android 5.0 diagnostic mode enable


Samsung Diagnostic USB not connecting

Step 5 Then you select DM+MODEM+ADB*


But after doing these with Samsung android 5.0 version and above nothing will happen. There will be nothing to indicate that the USB is detected on computer.

So what will you do here?


How to enable Samsung android 5.0 version & above diagnostic mode

Solution
  1. Put the phone in recovery mode eg Note S4 SM-N910A by holding Volume up and Home and power buttons together.

  2. When the Samsung enters recovery mode, then you choose “enable cp or enabling cp

  3. Then reboot the Samsung android lollipop 5.0.

  4. Then dial *#0808# choose dm+modem+adb.

  5. Plug your USB to computer; check the setting port on Z3X or Furious Gold.

  6. By now the Samsung android should be connected and you can do other things.


Caution:

Flashing or doing anything to your android can brick your phone especially Samsung galaxy Note S4 N910a. Zamdtek is not responsible to whatever harm done to your phone. But this particular solution has been tested by us and is working 100%.

Upcoming search

How to unlock Samsung S4 network

11/24/2016

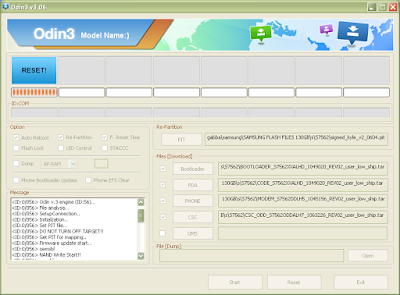

How to flash Samsung with Odin and download ROM

Odin is a computer based program interface just like Research download tool and SP tool which is used to install / flash ROM Samsung Android device smartphones. Just like Research download tool which is used for flashing and upgrading SPD android phones and SP tool used for flashing MTK based phones, Odin is mainly used for Samsung android phones.

Odin for samsung flashing


How to use Odin

1. Install USB drivers for your device on your PC. This driver can be gotten from Kies samsung software but after downloading Kies you must close the software.

2: Backup your Samsung phone if it can still come up.

3: Ensure that the battery level should be around 60-80%. The more the better.

4: If your phone can still boot then, USB Debugging should be enabled on your device.


How to install or flash samsung with odin

  1. Download the official firmware zip package for the particular  device from here Samsung ROMs. Then extract the downloaded zip file. After extraction, you will either get one .tar / .tar.md5 file or will get multiple files.

  2. Download Odin3_v3.07.zip and extract the downloaded zip file. You will get following files: Odin3 v3.07.exe, Odin3.ini, tmax.dll and zlib.dll

  3. Right click on Odin3 v3.07.exe and run it as administrator to start Odin.

  4.  Boot your device in download mode. For most Samsung devices, you will need to do this:

Switch your device off.
Press & hold Power + Home + Volume down buttons till you see a triangle and Android robot.
Now press the Volume up button to confirm entering the download mode.
Once it is in download mode, connect your device to the computer via USB cable.

When your device is connected, one of Odin ID:COM boxes will turn yellow and display the COM port number.

Note Before you open Odin make sure you have connected your samsung phone for easy connection.

If you do not see the port number in any of ID:COM boxes or if the box does not turn yellow, please do not proceed and check if the USB drivers are installed correctly and the device is connected via USB.

5.If the firmware zip package had just one file, click on PDA button, then browse and select the firmware file (.tar or .tar.md5).
If not:

6: If the firmware package had multiple files:

Click on PDA button, then browse and select the file that has CODE / PDA in its name.
Click on Phone button and select the file that has MODEM in its name.
Click on CSC button and select the file with CSC in its name.
Skip any files that you did not find in the package.

Leave the check boxes the way they are"

Auto Reboot and F. Reset Time checkboxes should be selected
All other checkboxes should be unchecked.
Step 8: After selecting the appropriate files, click on “Start” button in Odin.

This will kick off the process to flash the ROM. Please do not disconnect your device during the process.

Step 9: Once flashing is complete, your device will reboot. You can now disconnect from the PC and start using it.



Alas! You can use Odin in these  steps to flash ROM on your samsung Android device using Odin.

However, try this at your own risk. We will not be responsible for any hard done to your device.

Miracle Box and flashing

Get everything you need to know about Miracle Box and usage.

Just like Volcano Box, Miracle box is a device that can be used for china phone read, repair, write imei and upgrade. This kind of phone flash device is so powerful that it can read file, write the file and unlock both password and network.

The set of phone it can work for ranges from china MTK, SPD phones to Samsung reset, Blackberry unlock Nokia read, write and format. It also read, write and unlock LG, Huawei and all most all android wipe data and rest.
How to use Miracle Box


Steps Follow the arrows carefully and know every operation details of Miracle Box usage. The same thing goes with crack, in crack there is no box so only USB cable is used for all opoeration.




miracle box and uses


You can watch video here China phone flashing video

Buy a Miracle box.

Create an email account.

Download old Miracle box software.

Download the Miracle box driver separately

Run the Miracle box setup.

Register the miracle box with the dealer you bought from.

Click on the Connect box button as in image above.

Select the kind of job you want to do according to the diagram above.

Before you do anything with the Miracle box always backup the phone flash file in case something goes wrong.

Save the file where you can remember for further use.


There are 3 different ways to connect a phone to Miracle box
Through the use of Jaf RJ45 cable

The use of Miracle Box follow cables which comes along the flashing box.

Through the use of USB cable. Here you need to download SPD drivers, MTK drivers, Coolsand drivers and so on.

The advantage of this Miracle box is that unlike other China phones flashing box, you have confident working with it. Once you backup the china phone flash file. If you phone is dead at the end of the operation just go back to the folder where you save the flash file and write the file back to the phone.

Hit us with questions!

11/23/2016

spd sc7715 flashing failed incomplete partition solution


Just as we have shown you on how to use Research download and Upgrade download tool.  Bear it in mind that it is not all SPD android that you can just write, flash or upgrade without any problem. Sometimes you get this error while flashing SPD android with Research or Upgrade download tool spd sc7715 flashing failed incomplete partition.

Don't panic  read down as we bring the best solution for this kind of problem.

Steps on how to solve spd sc7715 flashing failed incomplete partition

  • Take a look at the image below.
spd sc7715 flashing failed incomplete partition solution

spd sc7715 flashing failed-incomplete partition  solution

  • Click on the research download settings.

  • untick 3rd 4th 5th 6th options below fdl 1 and fdl2 box.

  • I advice you use Research download 2.9.9005 and below version.

  • Then you click starts button.

  • Wait for about 30 minutes for the flashing to be concluded.

  • If the problem continues then is time you download another file.

  • After trying another file and still the same the use Miracle Box.

How to use Miracle Box and flash SPD android phone

Steps

  1. Get a working the same type of SPD android phone.

  2. Connect your Miracle box to the computer.

  3. Get a working USB cable and working brain.

  4. Open the Miracle box interface.

  5. Select Read file.

  6. Hold Up of the android phone.

  7. Connect the phone to USB and allow it to read the flash file.

  8. Save the file to a location where you can remember.

  9. Bring the bricked SPD phone do step 6.

  10. Connect the phone to USB and select write file.

  11. Allow the phone to write the file finish

  12. Then your phone is back to life.

If these two methods failed it means your SPD android is hard bricked. By following these instructions carefully spd sc7715 flashing failed incomplete partition is 100% solved.

Hit us with your comments or observation. If we help you say thanks and tell others.

Coming search how to connect android to Window 7 that requires Window XP.........

How to repair Bricked or dead BLU

How to repair Bricked BLU


Here, we are going to see how to fix bricked BLU andriod smartphone. It is still very much unknown what can cause some android phone to bricked or hangs on logo. But recently I came to find out that excessive browsing without active antivirus is one of the major factor.

Again, if you like to transfer music from your to another and also connect from people then you must pick virus that can brick your phone any moment.

BLU android


Steps on How to unbrick bricked BLU android phone.

  • Get a working USB cable.

  • Get a working common sense

  • Get your computer ready

  • Download SP Tool software.

  • Learn how to us SP Tool here.

  • Check the model of your BLU android.

  • Go online and download the scatter file.

  • Safe your scatter file where you will remember.

BLU android


How to repair Bricked BLU
  • Load the BLU scatter file on sp tool.

  • Uncheck preloader box.

  • Click download button.

  • Remove the smartphone battery .

  • Insert USB cable put the battery back.

  • The BLU android will start downloading.

  • Wait till you see passed or OK on sp tool.

Another way to flash or unbrick this BLU android is the use of Miracle box or Volcano box.
  • Connect your Flashing box with computer.

  • Open the software interface.

  • Select write software.

  • Load the scatter file just like sp tool.

  • Connect your BLU android with USB.

  • Remove the battery.

  • Reinsert the battery.

  • Then flashing will start wait until is done.

After this your phone will take much time for the first boot. If it doesn't boot then you have to do manual hard reset. Some times it may require you to write imei  it it show "imei null on invaliid".

If you follow the above process carefully and flash with correct scatter file then your phone will be back to normal.

If we help you hit us with comment.

Huawei S7-105 Tab Hard Reset

Huawei S7-105 hard reset

Huawei S7-105 Tab Hard Reset with Miracle box

Lets see how to hard reset Huawei S7-105 tab. This is for educational purposes unless you forget your password. I have read online where many people claimed to have done hard reset to this particular phone with button combinations. I don't think if this is true. Here let me present two important steps involved in Huawei S7 Tab hard reset.

Step 1 Huawei S7-105 reset put it in fastboot mode

  • Charge the battery up to 50%

  • Press Vol + and power till first Huawei logo appears then immediately release only power button.

  • keep pressing Vol+ till the device is in fastboot mode(BLUE BLANK SCREEN).

  •  Connect your device to computer & install fastboot drivers.

Step 1 Huawei S7-105 reset use Volcano box or Miracle box

  • Open the software interface.

  • Select android option.

  • Choose fastboot from the android.

  • Connect the Huawei S7-105 ideos with USB cable.

  • Allow the drivers to be installed.

  • Click on wipe data.

  • If the phone is properly installed the hard reset will automatically be performed.

By now the your Huawei S7-105 ideos is set the factory reset so you have to set up the phone from begging. This is the best and known way to hard reset Huawei S7-105 tab ideos.


Disclaimer

Factory Hard reset will set your telephone in original factory settings. It will expel every one of the information and applications that you introduced. Your contacts will be evacuated and you need to include them once more. Zamdtek is not responsible for any damages that may happened due to using this guide to your phone. If any problem happened that related to flashing instructions, Zamdtek will help you to solve it. This is for educational purposes.

Zamdtek is associate with wireless organizations like Huawei and some other and so forth Makers/Merchants .All trademarks are the property of the particular trademark owners. Zamdtek simply give outlines to ponder and repairing reason.

10/09/2016

How to flash infinix X510 Hot 2 without USB

How to flash infinix X510 (Hot 2) without USB

Most of the time we got our android only charging but cannot connect to computer because the USB is bad. It should be noted that the used though contains five pin but only 2 are used for charging. The remaining two serves as tx and rx, the last one just idle.

Just follow as I show you how you can connect the kind of phone to your pc.

  1. Get a USB cord
  2. Cut the head that goes to phone
  3. Get lead, paste and soldering iron
  4. And make use of your common sense

Take a look at the picture below and make connections


flash infinix X510 without USB


Download all infinix android stock rom here
Download Tecno D3 ROM
Download Tecxno Q1 ROM

It may seems difficult but following the instruction and wire code you will get it right. Connecting the USB cable is one thing but the other is connect battery through the battery terminals as at this stage this Infinix is till open. so when you want to connect the battery, you can use the external power supply of 4.2V.


Lets go
  1. Connect the USB to computer.

  2. Open SP tool software or Infinix Flashtool

  3. Download the match scatter file.

  4. Select the scatter file and click download.

  5. After flashing teh infinix the phone may hang on logo.

  6. Then what you will do at this stage is to do hard reset.

  7. You repeat step 6 untill the Infinix boot normally.

Note:

Working with phone may not be easy as you think especially when you don't have an idea. Anything that has to do with loosing the and connecting wires must be done with extreme care. this is because either you pull a component or you short two components.

Zamdtek is not responsible for more harm or damage done to your phone during this process. We are always here to help. you can ask before you start.

7/31/2016

How to connect china phone to Computer with china phone test point

How to flash smaller china Phones without USB charging port through test point with RJ45 cable.


This may sound strange but that is why we are exceptional and different from others. This is because we combine electronics Knowledge with GSM technology to bring you the best of phone practical repair. This particular solution here is never be heard or done.

Flash a phone without USN charging port working hmm. Just follow the steps bellow.

Step 1 the test point located front and back

China phone test point




Over the years of experience i have discovered that it is

easy to use RJ45 cable to connect china phone to pc

instead of through charging points.

This I called *china phone test point*

just get old UFS or JAF cable cut this way and connect

Step 2 the test point located under the lcd or screen





Step 3 the test point located across the front panel





step 4 the test point located under the battery






and connect here








so whether there is charging port or not you can now flash you china phone,

Use box like GPG Dragon, Avarta, Miracle box, Volcano box etc

Check china Phones power solution

How to make RJ45 for china phone test point

  • Look or buy old JAF Box FBus cable.

  • Gently remove the head of the Jaf Box FBus cable.

  • Open the eight connecting wires..

  • Cut off all the cables expect light-yellow, Green and red.

  • Light-yellow is connected to Tx.

  • Green is connected to GND

  • Red is connected to Rx.

Note

Hardware problems  Zamdtek posted here has been tested in our workshop. We don’t take any responsibility whatever if anything go wrong in cause of your own work . We repeat this and loud please do it at your own risk. You can ask us how. Use this guide at your own risk.

The instructions provided in this tutorial for educational purpose only. There is no guarantee that these steps will work for your device.

About Zamdtek

We developed this site as a result of company expansion. We have over 10 years experience on PC and Phone repair. We are committed to help you both online and workshop. Visiting us will give you hope and satisfaction. We have covered almost every problem you may face with your Phone or PC.

Socialize with Zamdtek:- Twitter | Facebook Page | Google Plus| StumbleUpon| TechForum | Linkedin |Youtube channel| Pinterest
